Due to excellent thermostable performance and superior flame-retardance, mica tapes are widely used for fire-resistant cables such as wirings, power and control cables, data cables, instrumentation cables, fire-alarm cables, etc.  In the case of fire, mica tapes protect cables from being destroyed under the extreme environment, which allows both electric power cable and communication cable operate long enough so that maintain normal work of the safety instruction device, machinery, information transmission. It is essential for avoiding the personnel safety issues, property damage and equipment disability.

Our mica tape is ideal for high-speed cable cladding during the production of cables.

Electric Insulating Property at normal temperature: white mica tapes are greater than gold mica tapes.

Electric Insulating Property at high temperature: gold mica tapes are better than white mica tapes.

Thermostable performance: gold mica tapes release crystalline water at temperature high than 800℃, white mica tapes release crystalline water at temperature of 600℃. The performance is also related to the compound degree of the mica tapes.

Our phlogopite mica tapes can be reinforced by single or double sides glass clothes or PE/PP film or fiber. Features and specifications can be custom made.

PE fim: polyethylene film.

Product features:

1. Excellent insulating property at high temperature.

2. Excellent environmental performance, free of asbestos, no poisonous gas at high temperature.

3. Excellent acid resistance，corona resistance, anti-radiation，tensile properties, flexibility, and electrical insulating property.

4. Ideal for high-speed cable wrapping. The products are dry and clean, non-sticky. Due to the high tensile strength, bendability，softness, the mica tape will not crack under high-speed wrapping.

5. Great fire-resistant performance. The cables wrapped by single layer of compound mica tapes can maintain normal operation of circuit for 3 hours when the fire flame temperature is up to 1000 ℃.

6. The usage of mica tapes in heat-resistant plastic sheath can reduce and prevent emission of toxic gases, fumes.

Specification and Properties:

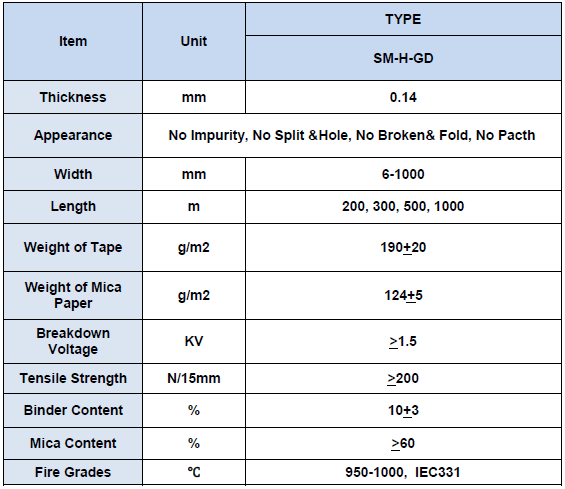

Phlblob.pngogopite Mica Tape

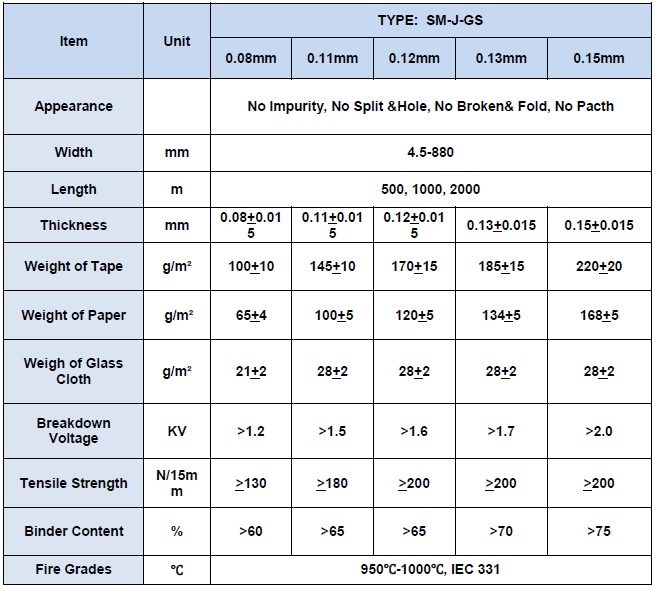

Phlblob.pngogopite Mica Tape with Single Side Glass Cloth :

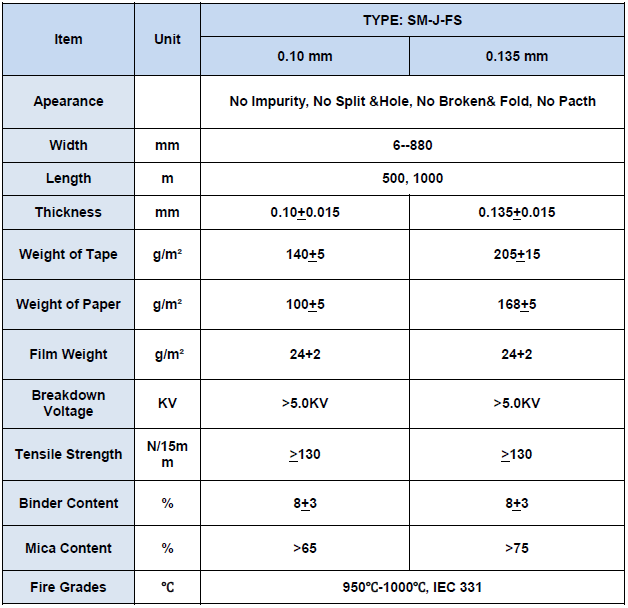

Phlogopite Mica Tape with Single Side PP/PE Film ：

Double Sides Reinforced Phlogopite Mica Tape：

 SM-J-GD：reinforced by glass cloth.

 SM-J-GFD:  reinorced by boh glass and film.

Synthetic Mica Tape Double Sides Reinforced by Glass Cloth:

 Specifications are not limited to the tables above, please contacnt by email or telephone for special demands.

 Quality certificates including ROHS and REACH can be provided depending on the customer’s requirement.
